22/8/07

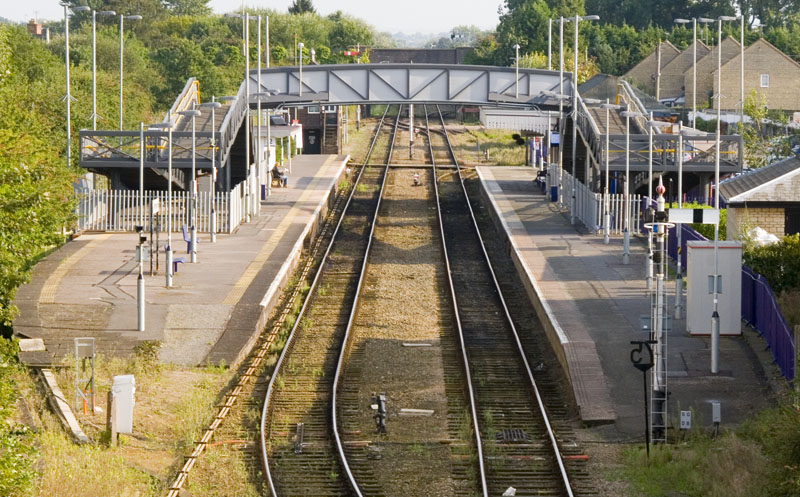

Station from North Moreton-in-Marsh is a small Gloucestershire town on the Cotswold line where the single-track section from Evesham doubles for the next section to Ascott-under-Wychwood. This is the view of the station from the Evesham direction.

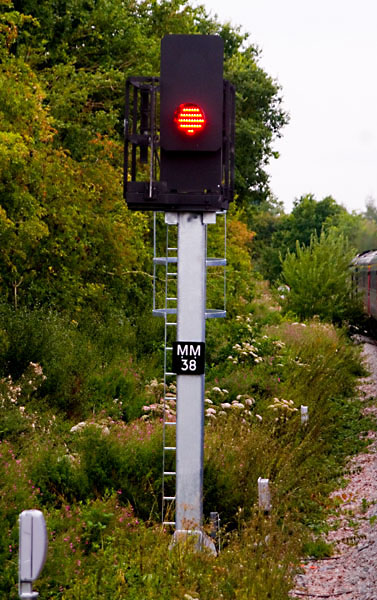

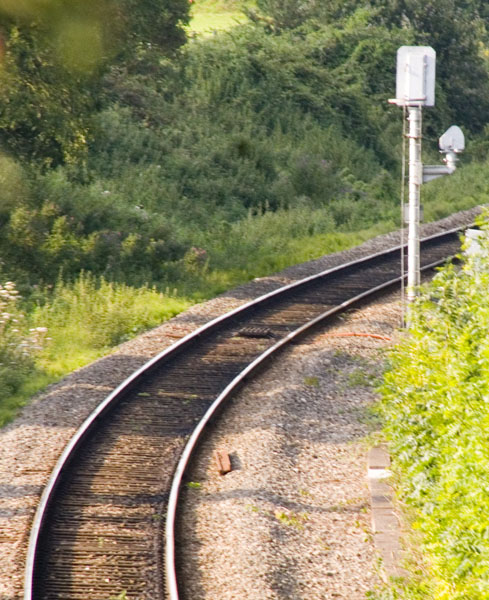

The line towards Evesham, with a rear view of the up home. View towards Evesham and up home

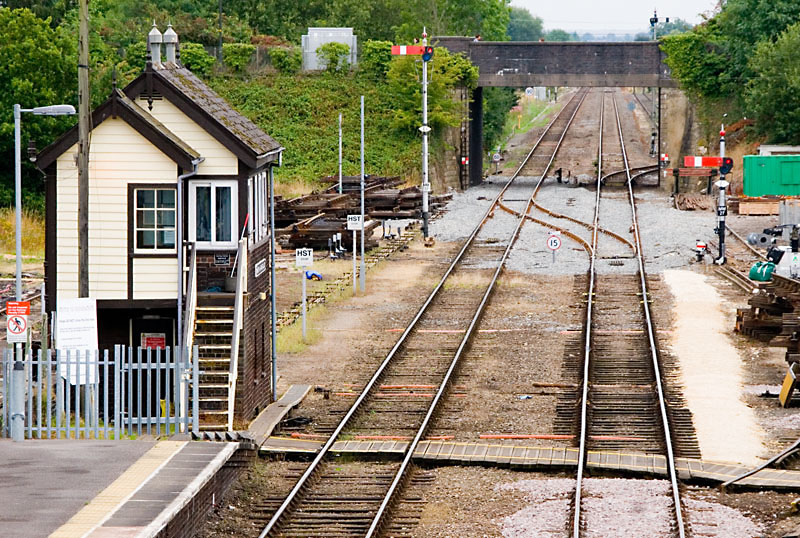

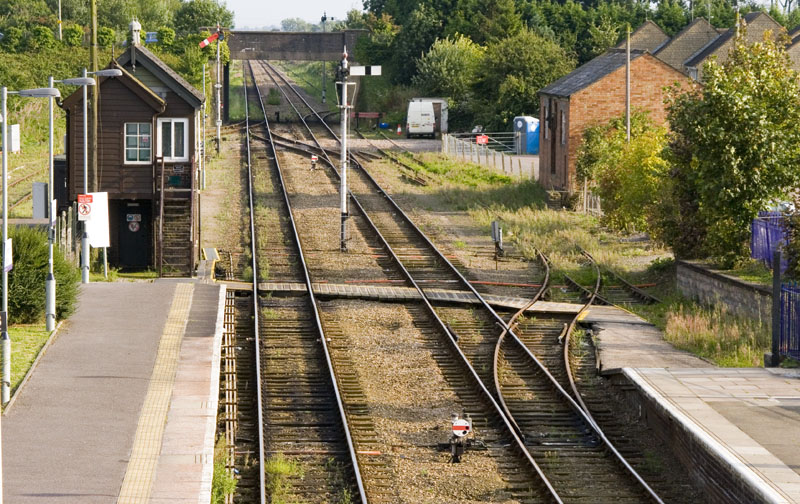

Track layout and signalbox The track layout at the other end of the station, with the signalbox at the end of the up platform. On the left is the down starter; to the right is the up starter.

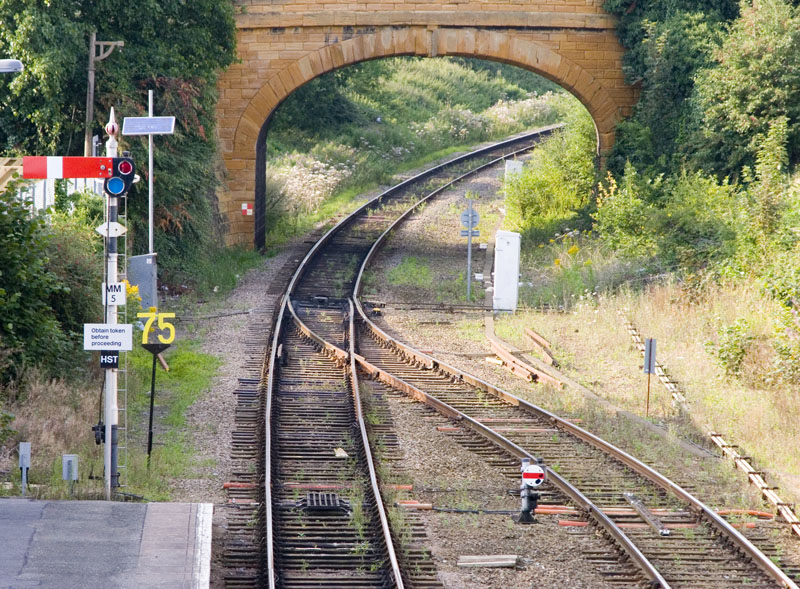

The advanced starter at the end of the down platform, and the double-to-single line junction. Down advanced starter and double-to-single junction

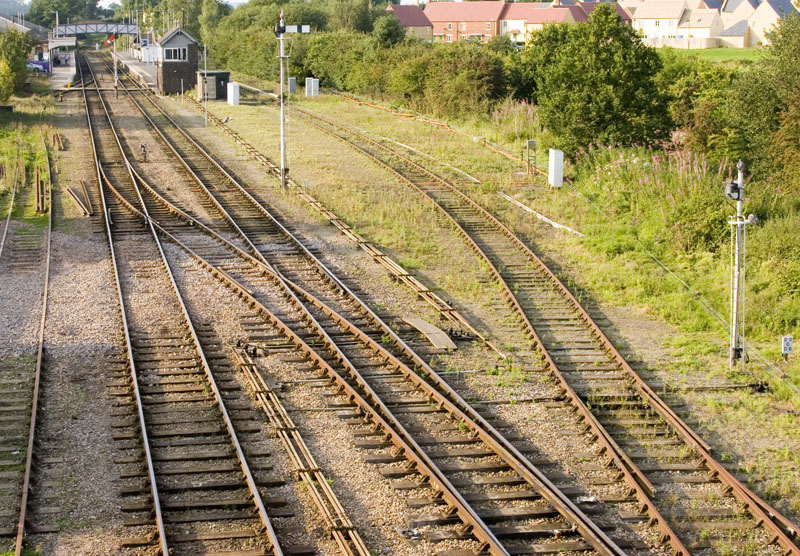

Station and track layout The track layout south of the station. The down innerhome can be seen beyond the road bridge.
The signalbox. Signalbox

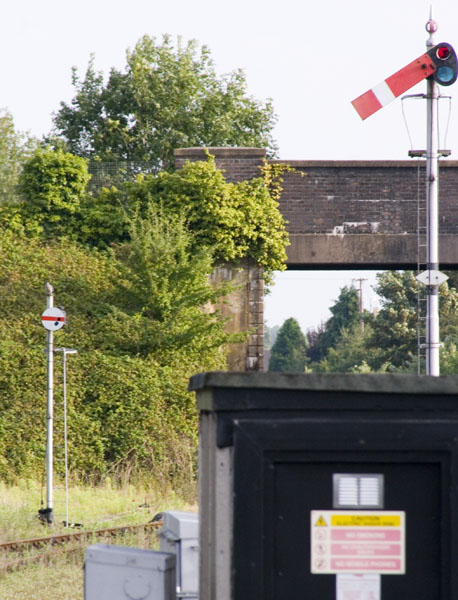

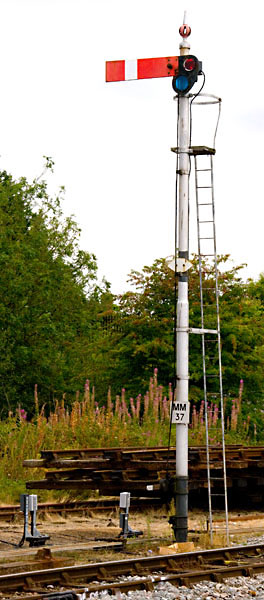

Elevated disc, and up starter An old-style elevated disc controls the exit from the up siding.

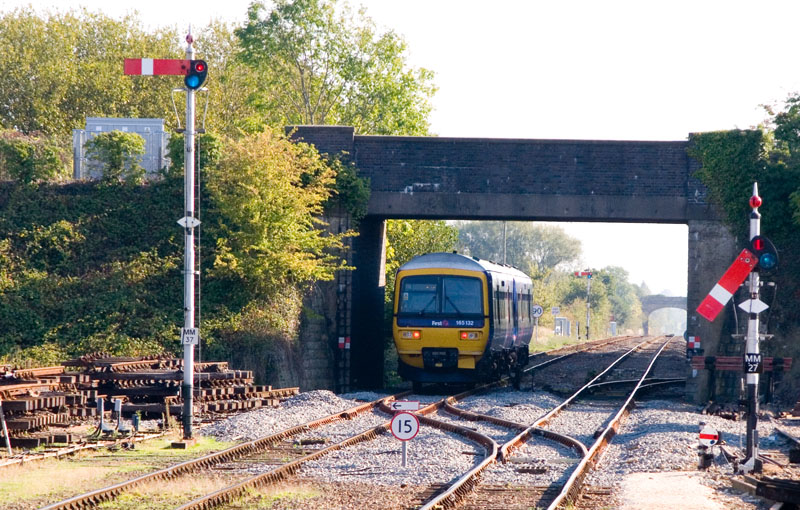

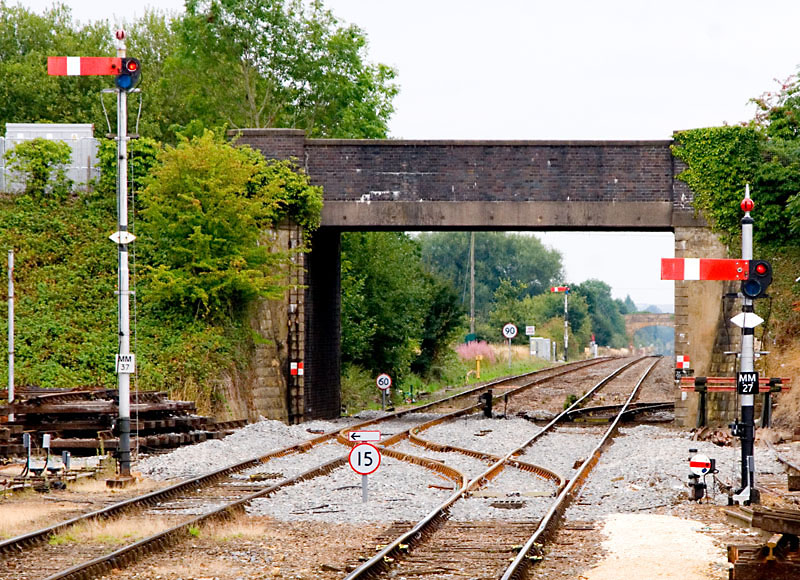

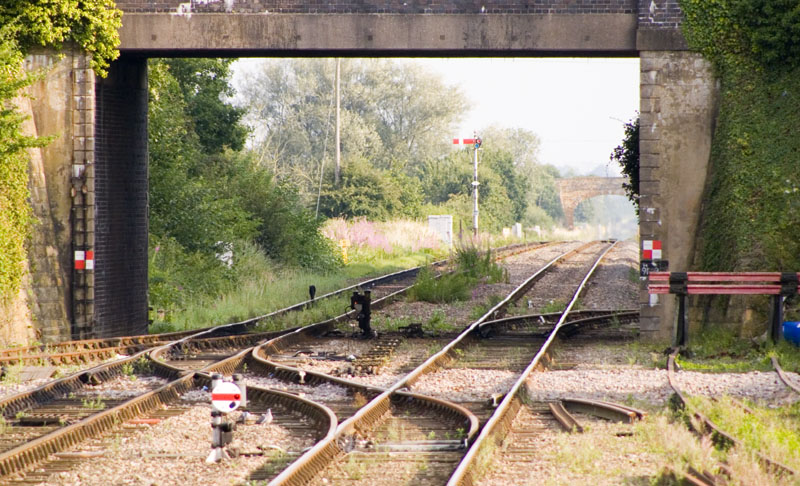

The track layout under the road bridge, with the up advanced starter beyond. Track layout under road bridge

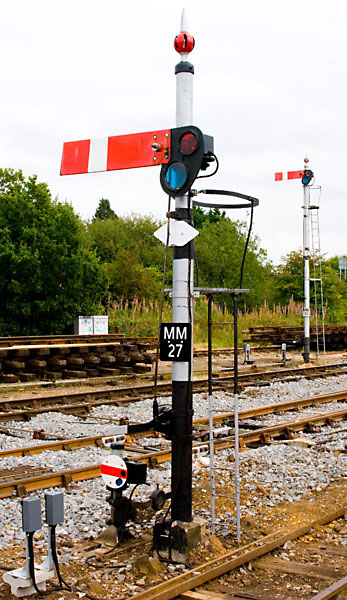

South end of station A closer view of the south end of the station. To the left of the down starter is a yellow disc.

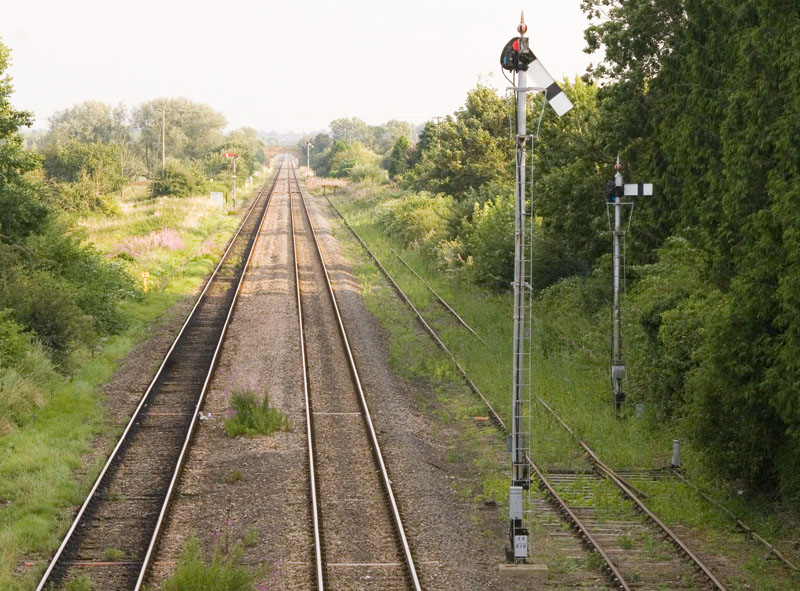

The line towards Ascott-under-Wychwood. On the right are the up outer and inner homes and a siding exit signal. View towards Ascott-under-Wychwood

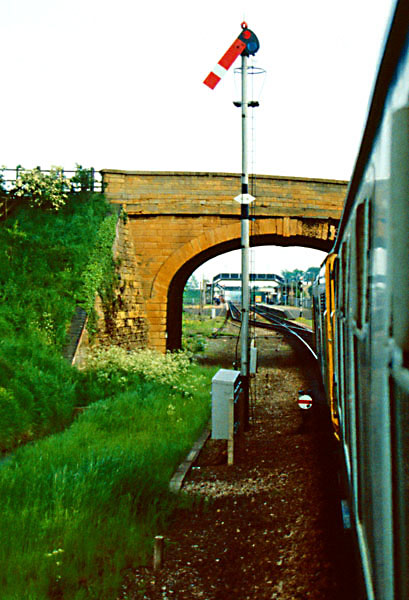

Approach from Ascott-under-Wychwood The approach from Ascott-under-Wychwood, with the down outerhome in the foreground. Unlike the other signals, it has a white-on-black numberplate. Bizarrely, you can see the posts of all four down stop signals in this photo, but only two of their arms!

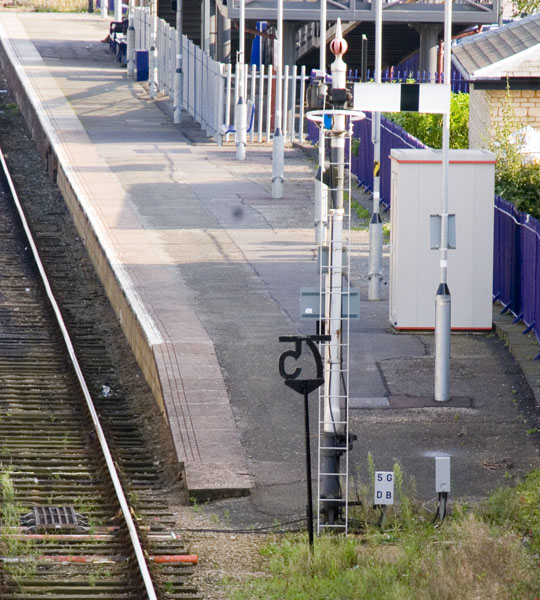

The cubicle on the platform behind the up starter contains an auxiliary token instrument so drivers can collect tokens for the single-line section without the signaller having to cross over the track. This is a recent addition to reduce delays to trains. Rear view of down starter

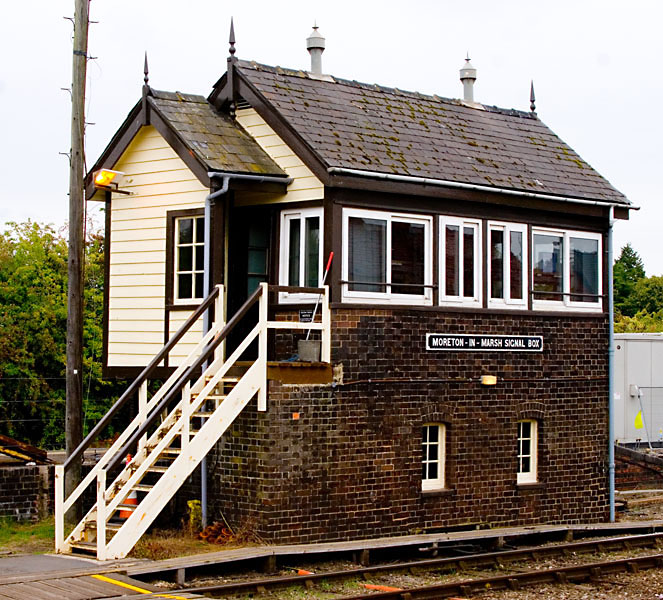

Signalbox A three-quarter view of the signalbox showing the porch and steps.
